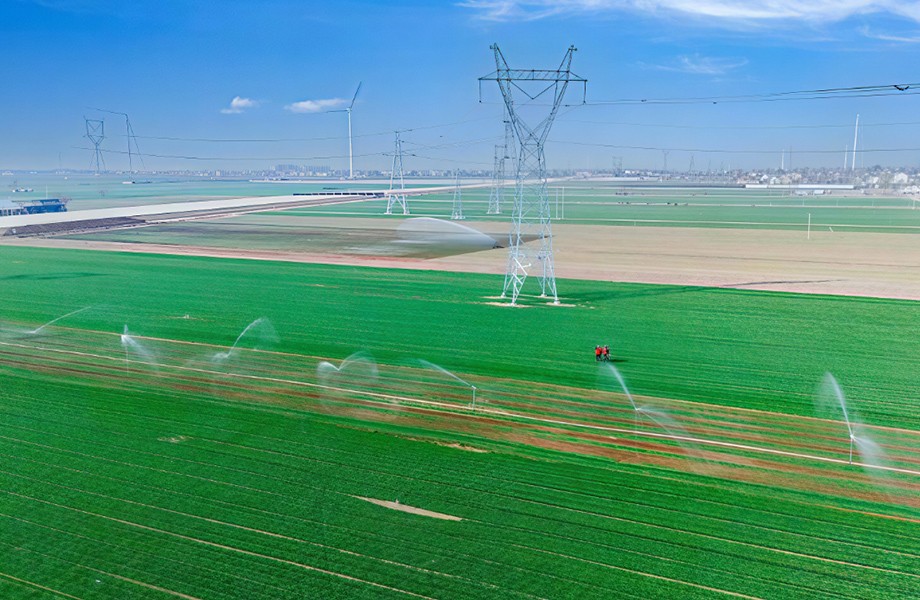

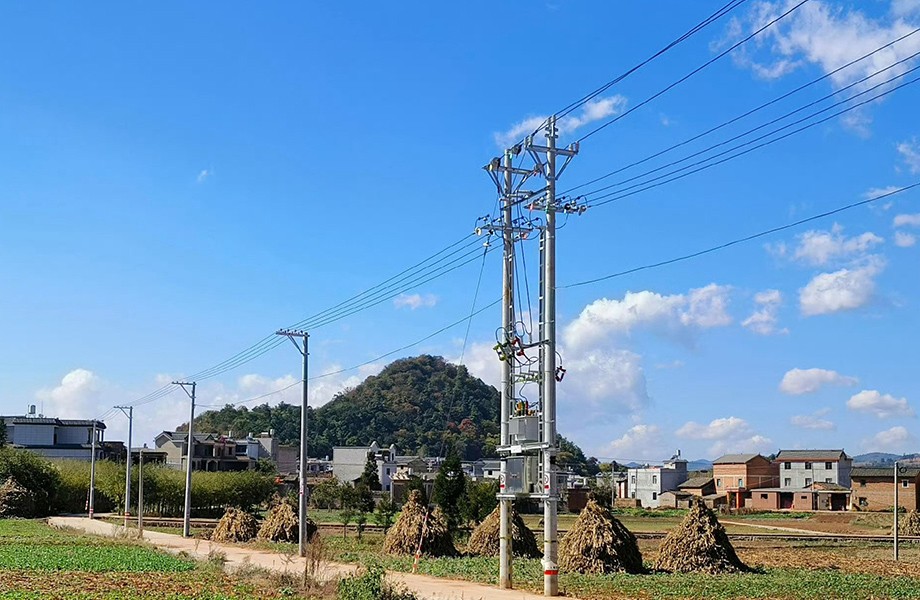

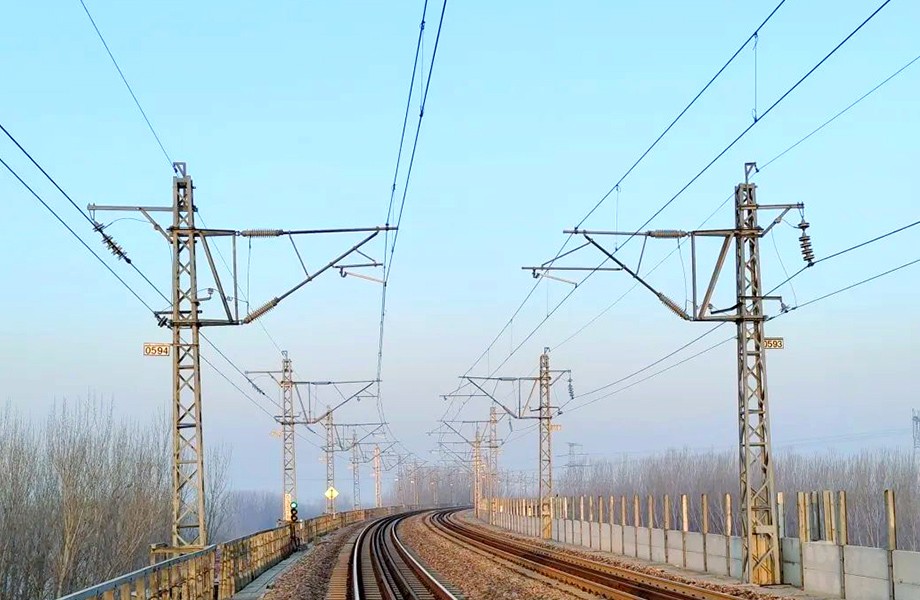

可供应电力柱上变压器,包括单相和三相柱上变压器。产品可减少低压配电线路长度、降低线路损耗并提高供电质量。变压器采用高效节能的线围铁芯结构设计,具有体积小、基础投资少、低压供电半径小、低压线路损耗低、全密封结构、过载能力强、连续运行可靠、维护简单等特点。适用于农村电网、偏远山区、分散村庄、农业生产、照明用电,也可用于铁路和城市电网节能改造。产品采用成熟技术、优质材料和元件,质量可靠,运行寿命长。
Oil free, with strong fire resistance, eliminating the risk of oil leakage; Capable of withstanding short-circuit current and overvoltage, and adapting to harsh environments.
Using environmentally friendly materials, low noise and no pollution, to assist in the construction of a green power grid.
Efficient cooling system ensures that the equipment maintains low temperature during long-term operation, effectively extending the service life of the equipment.
Humanized design, simple operation, convenient and fast daily inspection and maintenance, significantly reducing operating costs.
Durable shell design, impact resistance, corrosion resistance, able to adapt to various complex and harsh working environments.
Modular structure design, supporting quick disassembly and assembly, combined with intelligent monitoring system, making operation and maintenance work more worry free and effortless.

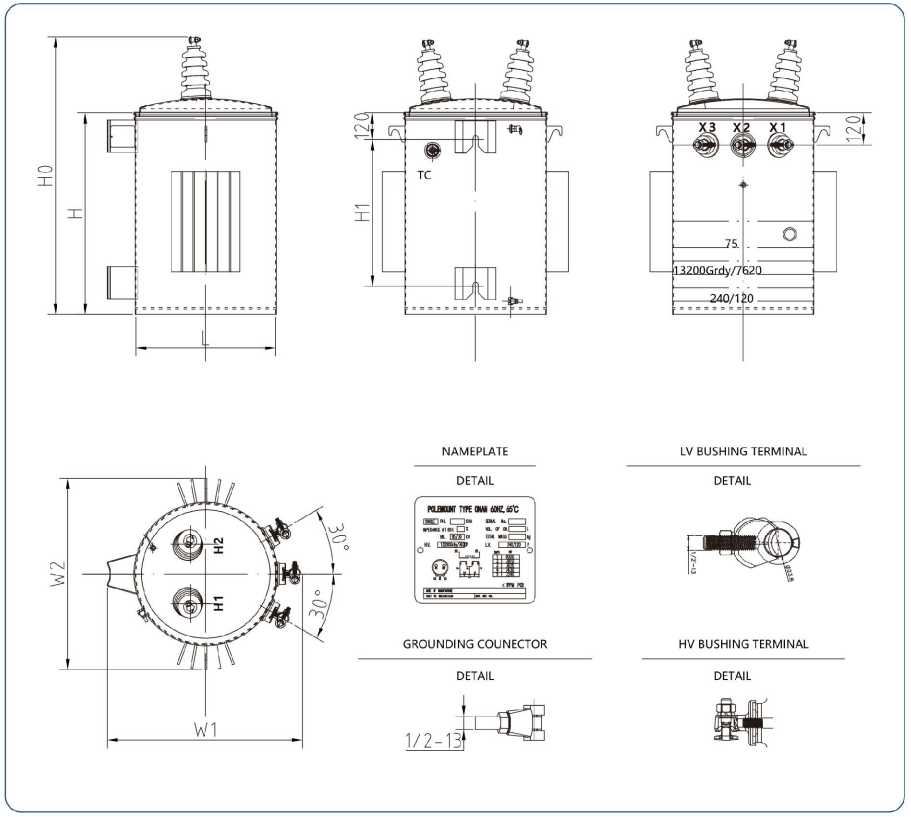

单相柱上式变压器
| 额定容量(kVA) | 高压HV | 低压LV | 效率 | |
| DOE(2016) | CSA(2023) | |||
| 5 | 34.5kV/19.92kV 13.8kV/7.96kV 13.2kV/7.62kV 12.47kV/7.20kV or others | 120-240V 240-480V 347V 600V or others | 98.58 | 98.47 |
| 10 | 98.70 | 98.60 | ||
| 15 | 98.82 | 98.73 | ||
| 25 | 98.95 | 98.87 | ||
| 37.5 | 99.05 | 98.97 | ||
| 50 | 99.11 | 99.04 | ||
| 75 | 99.19 | 99.13 | ||
| 100 | 99.25 | 99.19 | ||
| 167 | 99.33 | 99.28 | ||
